after deciding i need some more inputs for my sound cards i whiped up this beast for under $25
http://users.bigpond.net.au/ibird/rob/live7.jpg
empty bay

http://users.bigpond.net.au/ibird/rob/live4.jpg
patched bay

http://users.bigpond.net.au/ibird/rob/live2.jpg
early version of the bay patched into my guitar FX unit

not bad considering a SB LiveDrive is over $100 and i dont have a SBLive anyway. if anyone else wants to give it a go jus ask me if u want to know more.

heheh good work

Not bad :).

How did you connect the 'live drive' to the sound card? Whast sound card are u using?

i've got a onboard AC'97 and a C-Media A3D card
4x RCA goto the back jus using 3.5mm jacks(headphone plugs) for the 2 speaker outputs
the XLR goes to the mic input and the 6.5mm socked goes to Aux in using those CD-Rom audio type connectors.
the 3.5mm heapphone sockes are 1 output for each card using same on the other end

the other 4 rca's are other aux inputs using cd-rom audio type connectors

Does it have optical in/optical out like the Live Drive? Cause that's its coolest feature, you can record the optical out from another computer (for ripping sound ingame), and you can record audio to minidisc easily, without reaching behind your case. plus it gives you a nice place to plug in headphones.

nah no optical, i got SPDIF on the card tho

I dont think he's to bothered with optical in/out
looks to me like its just for he's hell guitar setup
nice FX unit SquarkyD :)

sif you wouldnt put some kool lights on it.

need blinking lights, thats what makes it kooler :D

i was thinking of putting a VU Meter on the space below it :)

ya whats a sound system with out lights... hahaha

so very, very ghey :D

I think these guys might have that tutorial

silver, where do you think he got the tutorial from to make it in the first place

yeah, buy get one of those groovy digital thingos, not the old school meter.

and another thing, why did j00 not have your cdrom drive in for the first photo????????

good point eds

*slaps table*

WE WANT ANSWERS DAMMIT!!!

hey pharcysde, where the f*** are you? and how are you using internet

or a you stilll at reggys?

and can you drop my windows 98 se cd in tonight, i left it azt your house the other day and the cdrom is a no go d00d, soz

NICE!!! it is sweet!!! now u ahevt to make me one!!! hahahahahahah!!!!! for $50

that's pretty impressive SquarkyD

here's my rockin super uber awesome pro outfit (courtesy of a low-quality webcam and 75 watt lightning)

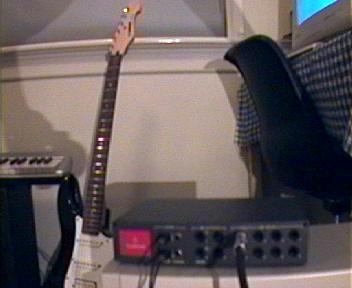

http://jason.qgl.org/screenies/moozik/mixer.jpg

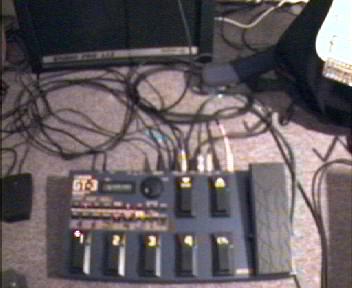

http://jason.qgl.org/screenies/moozik/boss_gt-3.jpg

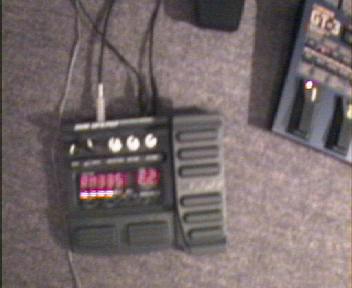

http://jason.qgl.org/screenies/moozik/zoom_gfx-707.jpg

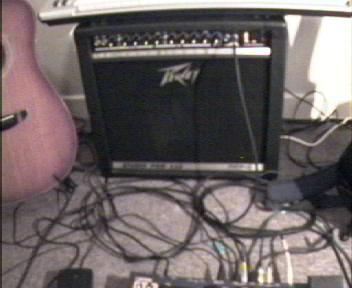

http://jason.qgl.org/screenies/moozik/peavey_powah.jpg

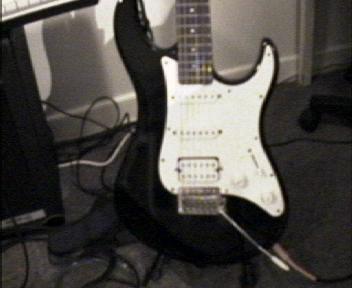

http://jason.qgl.org/screenies/moozik/strat_wannabe.jpg

http://jason.qgl.org/screenies/moozik/headstock.jpg

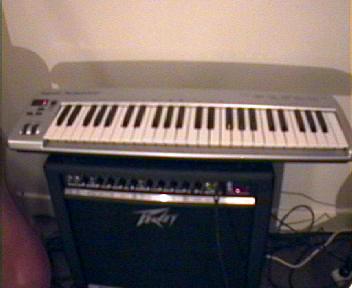

http://jason.qgl.org/screenies/moozik/midi_keyboard.jpg

http://jason.qgl.org/screenies/moozik/whereisitslaaarts.jpg

the CD is out cause dad wanted his 52x Sony CD-ROM back :( - the pics were takin at 2 different times.
and sif my BC Rich doest own j0r yamaha jim :P

oh and is that a ISIS 8CH card jim?

nearly everything owns my yamaha :)

actually it's not that bad, I can get pretty good sounds from it and it plays ok

and yeah, it's an ISIS

its not an 8 channel card.

its a set top boix that comes out of a sound card

eds msn me now

eds it's a breakoutbox for a 8ch sound card

it actually has more channels than 8 btw, the one we got at work can go up to 15 or something

It's 8 input mono (4 stereo), 4 output mono (2 stereo) + both coax and fibre s/pidf, plus the midi in/out/thru. It connects to my pc via a cable that runs into the daughterboard which is joined to the soundcard itself via a short ide-type ribbon cable.

I use a fibre cable for recording midi out and back into audio cos I can never work out how to do it internally in the software I've tried so far (la pro, cakewalk) - never actually used more than one input simultaneously yet cos it's just me sitting here playing guitar - I have no other analogue devices.
